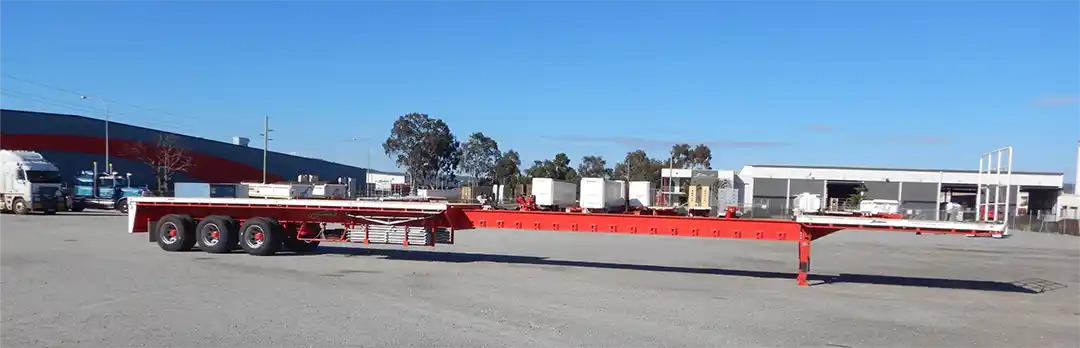

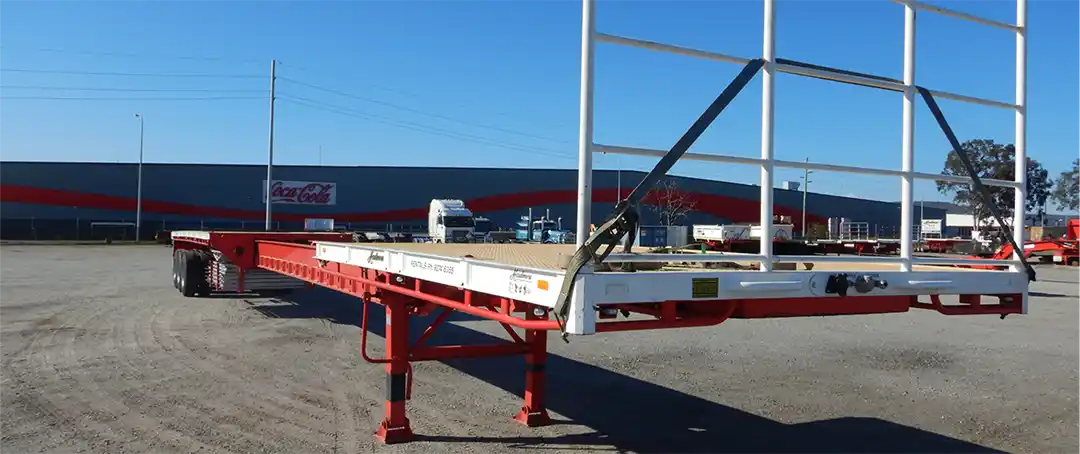

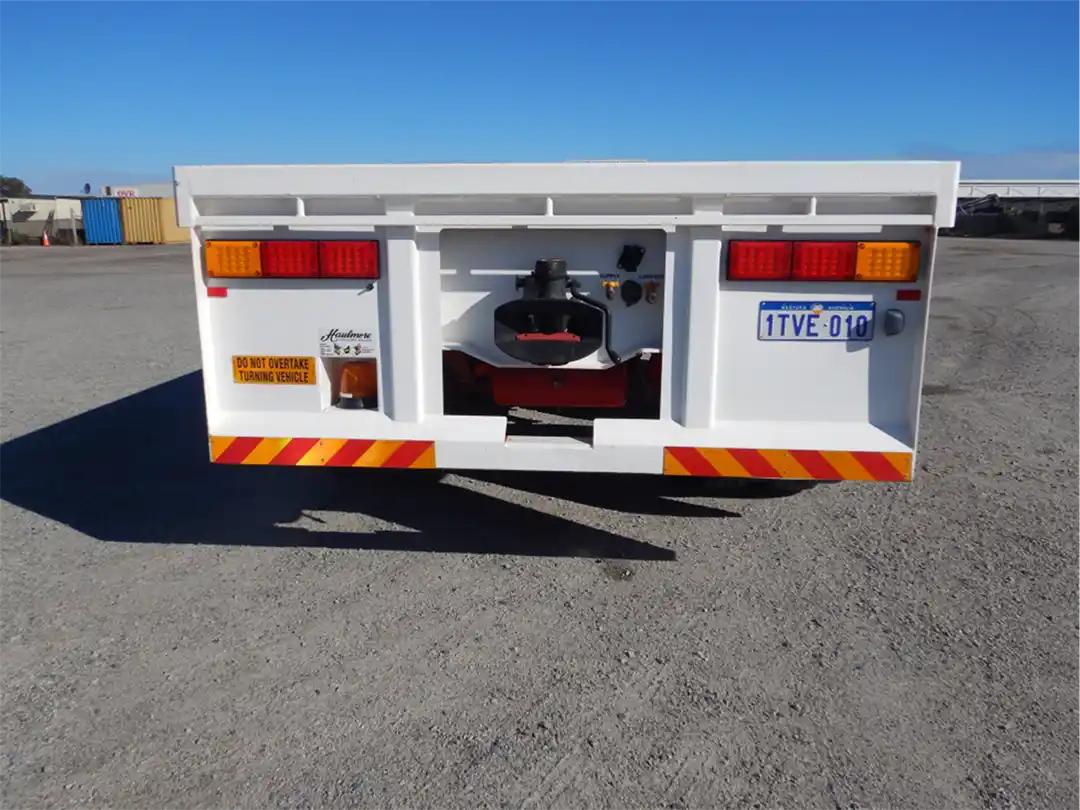

2024 Haulmore Tri Axle Flat Extendable Trailer Haulmore · 2024 · Price on application
Tri-axle flat extendable deck, 13.7 m closed extending to 22 m open
Haulmore Tri Flat Extendable Trailer 13.7 Metres CLOSED – 22.6 Metres OPEN Front end & Rear load rack EBS – Brake System to ADR 38/04 Compliance Two Tool Boxes Cradle Tyre Carrier Removable King Pin Full set of Twist Locks
PRECISION VIEWER Inspect this build Precision Viewer Orbit, pan and inspect the 2024 Haulmore Tri Axle Flat Extendable Trailer from every angle. Launch 3D walkthrough DESIGN RATING 47,000 kg AGG MASS 47,000 kg SUSPENSION Tri leaf 2.7m spread AXLE CONFIG tri-axle TELEMETRY Full specification Mass & Ratings Design rating 47,000 kg AGG trailer mass 47,000 kg Tare weight 9,960 kg Payload 37,040 kg
Dimensions Deck length Closed 13.7 m / Open 22.0 m
Running Gear Tyres Thirteen (13) Stud count 10 stud Suspension Tri leaf 2.7m spread Suspension spread 2.7m spread Axle configuration tri-axle Axle count 3
Braking & Electrical Brake system Drum brake ABS/EBS EBS Electrical Multi-voltage Lighting LED
Deck & Body Floor material 5mm steel chequer plate
Securing & Accessories King pin 90mm Hitch type ring feeder with brake and electrical connections Bolster pockets 12 (6 each side)
Compliance Brake/ADR compliance ADR38/04
BUILD FEATURES Engineered in ▸ Haulmore Tri Flat Extendable Trailer, PRICE: POA ▸ 13.7 Metres CLOSED – 22.6 Metres OPEN ▸ EBS – Brake System to ADR 38/04 Compliance ▸ Two Tool Boxes ▸ Cradle Tyre Carrier ▸ Removable King Pin ▸ Full set of Twist Locks DEPLOYMENT Built for
REQUEST Get a quote on the 2024 Haulmore Tri Axle Flat Extendable Trailer Tell us the job. We'll reply with pricing and availability — usually same business day.
